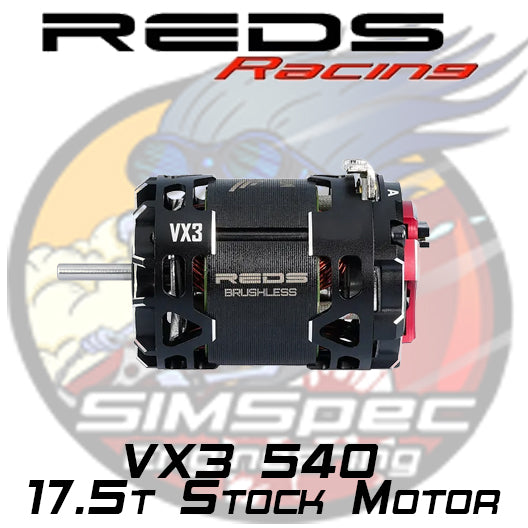

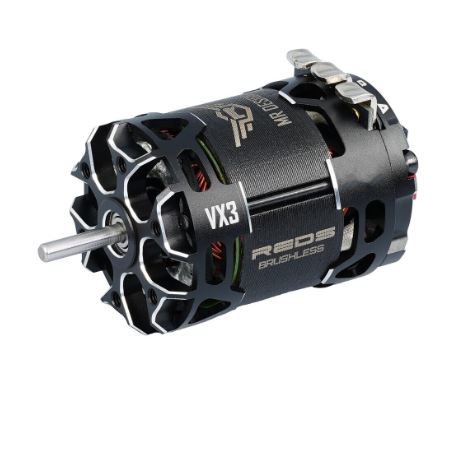

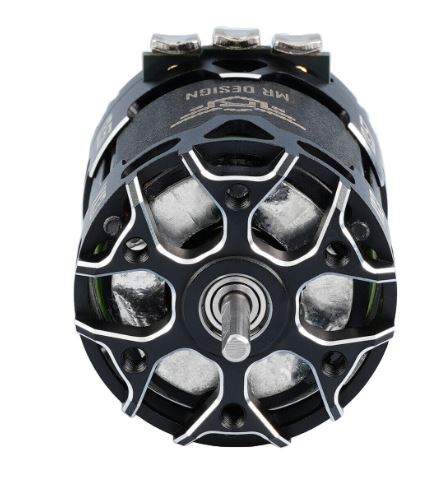

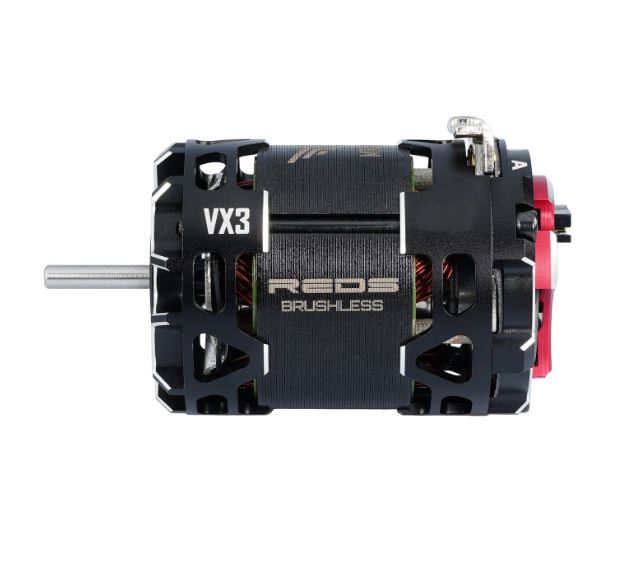

REDS Racing VX3 540 17.5t

REDS Racing VX3 540 17.5t

Regular price $165.00 AUD
Regular price Sale price $165.00 AUD
Sale Sold out
Tax included.
Product Details
UPC: 761000967945
Brand: REDS Racing

Factory Selected Motors add 2 days to order processing time.

The REDS VX2 540 Sensored Brushless Motor is a low resistance 17.5T motor that guarantees maximum power and efficiency to ensure a big improvement over the previous version. The 2-piece CNC machined can offers a 20% increase in cooling efficiency compared to the 1st generation REDS motors. The High Power Stator doesn�t use a separate insulator, helping to create a lighter motor and guarantee improved cooling efficiency. REDS Racing VX2 brushless motors incorporate �maximum low resistance copper wire� that provides very low internal resistance. This pure copper magnetic wire has been combined with Low resistance collector rings to guarantee maximum power and higher RPM. The precision balanced neodymium high-temperature rotor for an increased performance and optional rotors are available to help tune for different track conditions.

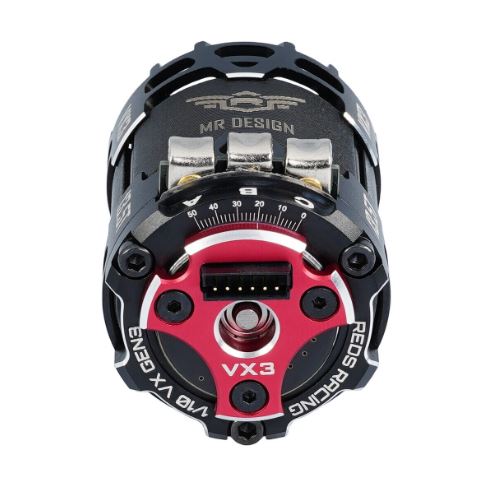

Aluminum End Cup for Precise Timing Tuning
Precision Ball Bearings Deliver High RPM
Silver Plated Solder Tabs Offer Low Resistance and High Power
CNC Machined Can is Lightweight and Offers Optimized Air Flow
High Purity Copper Windings for Maximum Conductivity
High Strength Balanced Rotor for High Speed

Rotor: 12.5
KV: 2880
Power: 190W
Max Current: 26A
Weight: 140g
EFRA/BRCA Legal: Yes
Can Diameter: 35.8mm
Can Length: 51.4mm
Shaft Diameter: 3.17mm
