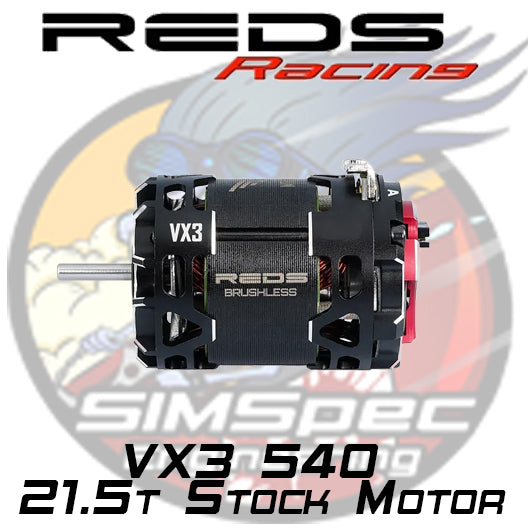

REDS Racing VX3 540 21.5t

REDS Racing VX3 540 21.5t

Regular price $165.00 AUD
Regular price Sale price $165.00 AUD
Sale Sold out
Tax included.
Product Details
UPC: 761000969628
Brand: REDS Racing

Rotor: 21.5T High Torque Stock
KV: 2355
Power: 150W
Max Current: 20A
Weight: 145g
EFRA/BRCA Legal: Yes

The REDS VX3 540 STOCK PRO 21.5 Turn Sensored Brushless Motor has been developed in cooperation with team drivers to create a two pole motor that delivers the highest level performance. Updates from the Gen 2 line include a higher quality precision balanced Neodymium high-temperature rotor that improves power and torque. It also features copper wire and low resistance collector rings that allow for very low internal resistance, creating increased power with less heat build-up. Combine this with the unique VX3 housing and you get an improved cooling system that helps to improve heat dissipation and maximize cooling.

VX3 STOCK PRO Features:
- Improved Power and Torque: The internal structure of the VX3 STOCK PRO has been improved with a brand new ultra high performance stator for higher performance and lower temperature and precision balanced neodymium high-temperature rotor.
- Even Lower Internal Resistance: VX3 brushless motors incorporate copper magnetic wires and low resistance collector rings that allow very low internal resistance.
- Ultra lightweight: VX3 motors feature precision machined 7075-T6 Aluminum housing with maximized cut-outs and additional openings to make them ultra light.
- Improved cooling system: The unique VX3 Housing has been designed to allow efficient heat dissipation and maximize cooling.
- Redesigned silver plated solder tabs
- Precision bearings for precise running and longevity
- Precisely adjusted and optimized timing range from 0� to 50�
- Available windings: 13.5 High Torque, 17.5, 21.5

REDS VX3 Selected Motors are hand built and selected with the top 5% tested motors of every batch and we guarantee Hall Sensor variance of 1 degree or better.
Each motor is hand assembled, shimmed and tested by our tech�s. Timing, KV and AMP are tested on the dyno for maximum performance. Reds VX3 Factory Selected comes with new titanium screws to increase performance.
Furthermore each motor comes with a quality control certificate reporting each motor main specifications such as KV, Current, Timing and Shimming.
